Chapter 5: Hits (5 points)

Hi, emergency troubleshooter,

recent studies suggest that the intense heat and hard labor of solar technicians often trigger strange, vivid dreams about the future of energetics. Over the past few days, technicians have woken up night after night with the same terrifying screams "Look, up in the sky! It’s a bird! It’s a plane! It’s Superman! Let’s roast it anyway!".

Find out what’s going on, we need our technicians to stay sane.

Stay grounded!

• http://intro.falcon.powergrid.tcc/

Hints

• Be sure you enter flag for correct chapter.
• In this realm, challenges should be conquered in a precise order, and to triumph over some, you'll need artifacts acquired from others - a unique twist that defies the norms of typical CTF challenges.
• Chapter haiku will lead you.

Solution

We're already familiar with FALCON chapter carousel from Chapter 1: Operator

The final fifth haiku says:

Silent shields arise,
code weaving unseen barriers —
guardians without sleep.

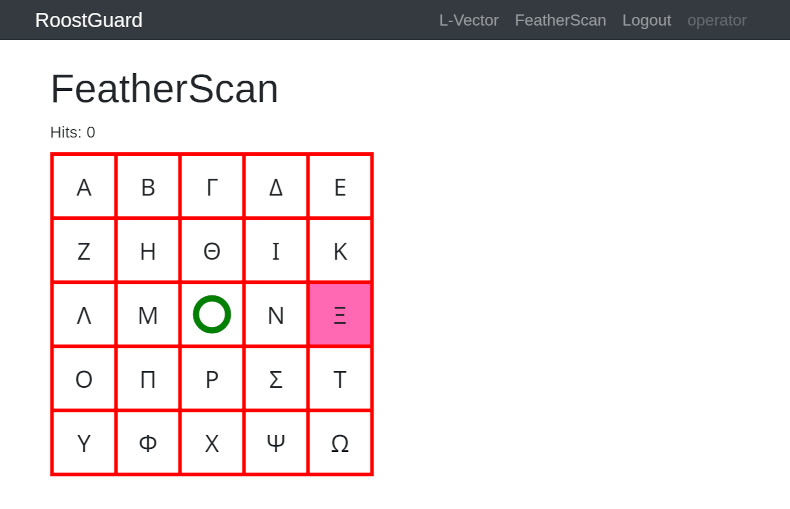

The title leads to http://roostguard.falcon.powergrid.tcc/, i.e. to the RoostGuard Controller page we've already seen in previous chapters, especially in Chapter 3, where we managed to log in and uncovered access to FeatherScan showing the same grid than in the video, however, with one symbol highlighted and a text of Hits: 0. This suggests we probably need to make the laser shoot at the highlighted position.

Another benefit of logged-in user is that the /operator form now contains a Raw command field, allowing us to send commands to the laser without having to use curl with extracted CSRF token and session cookies.

Sending Fire command (i.e. FIRE0000 value) now also works and (after a while) we can observe the laser hitting the centre of the board. Our fire attempts are also marked by the beginning of our session ID being shown in the first line of the display, so that we can distinguish our attempts from those of other participants.

Similarly to Chapter 3, we can take two paths.

The first one involves experimentation and a "qualified guess". Since the fire command contains those extra zeroes, we can guess that these actually represent the coordinates where to fire. By iterative experimentation we can come to the conclusion that the command structure is FIRExxyy because if we slowly increase the first number (FIRE0100, FIRE0200, ...) we can see a laser firing more and more to the right from the centre, increasing a second 2-digit number causes the laser to fire above the centre. We can also notice a bigger gap between 09 and 10 and derive that the numbers are in fact hexadecimal, so 0a to 0f fill that gap.

That allows us to target anything in the upper right quadrant, however, we still need to figure out how to shoot "left" and "down", i.e. to negative coordinates. Since we've already uncovered that the numbers are hexadecimal, i.e. the system uses one byte to represent the x-coordinate and another byte to represent the y-coordinate, we can try representing negative numbers in the most common way - the two's complement.

Alternatively, we can take more analytical approach. Since we have the firmware that we retrieved in Chapter 2 and decompiled in Chapter 3, we can check what it does (again, AI assistants might be very valuable to explain assembly language).

There is no FIRE command in the firmware, however there are AIMM and LASE operations. The web form handler very likely interprets FIRE command as a composition of aiming and switching the laser on/off.

The analysis confirms the same conclusion we've made above by experimentation. The AIMM command controls the turret targeting system in the firmware. It accepts two hexadecimal coordinate parameters that specify the X (horizontal) and Y (vertical) position to aim at.

The command format is AIMM<XX><YY> where <XX> represents 2 hex digits for X coordinate and <YY> 2 hex digits for Y coordinate. E.g. AIMM000c aims at X=0, Y=+12.

The parse() function (at 0x2a32 in the firmware) converts two hexadecimal ASCII characters into a signed 8-bit integer and confirms the "educated guess" about two's complement representation.

After parsing, coordinates are clamped, probably to the physical limits of the turret. The X-axis limit seems to be from -18 to 18 (code at 0x10f8-0x110e) and the Y-axis (at 0x1112-0x1124) uses the range of -18 to 12.

This gives us the following coordinate system (asymmetrical on Y-axis):

        Y-axis (vertical)
            ^ +12 (max)
            |
            |
  -18 <-----+-----> +18  X-axis (horizontal)
  (min)     |     (max)
            |
            v -18 (min)

If we overlay this system over the grid of Greek letters, we end up with the following grid (coordinates should represent the centre of each cell)

	X=-18 (ee)	X=-9 (f7)	X=0 (00)	X=+9 (09)	X=+18 (12)
Y=+12 (0c)	Alpha (ee0c)	Beta (f70c)	Gamma (000c)	Delta (090c)	Epsilon (120c)
Y=+6 (06)	Zeta (ee06)	Eta (f706)	Theta (0006)	Iota (0906)	Kappa (1206)
Y=0 (00)	Lambda (ee00)	Mu (f700)	BLANK (0000)	Nu (0900)	Xi (1200)
Y=-9 (f7)	Omicron (eef7)	Pi (f7f7)	Rho (00f7)	Sigma (09f7)	Tau (12f7)
Y=-18 (ee)	Upsilon (eeee)	Phi (f7ee)	Chi (00ee)	Psi (09ee)	Omega (12ee)

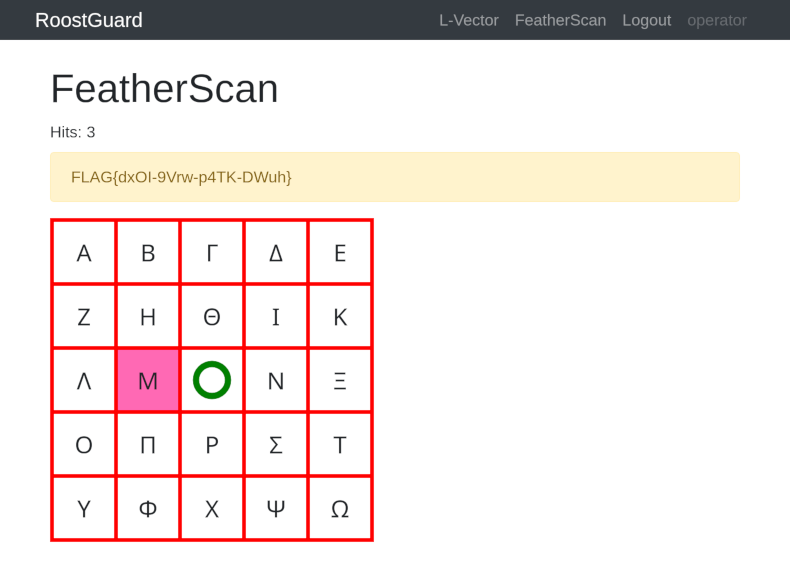

With this information, it is just a matter of issuing the sequence of correct FIRExxyy commands. After 3 successful hits, the FeatherScan page displays the flag.
